BUILD JOURNAL: SPECIAL SERIES

The final stop for E9x M3 wings.

Over the last 2 years, I have juggled with the idea of putting a wing on my E92 M3: Mk2 GT2, OE style GTS, M240iR

Which would it be?

In this Special Series, I documented all the BMW M wing options.

I explore the original BMW M development, the adjustments made to the replicas and last but not least: my installation of the GTS wing.

Cheers,
- Matt / @m3_epoustouflant

Read the special series

Spec your wing

CP-GT4MK2

GT4 Mk2 Carbon Fiber Wing

Made in Germany

Factory Direct Process

[{"id":44526298005754,"title":"GTS Standard \/ Raw Carbon","option1":"GTS Standard","option2":"Raw Carbon","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GTS Standard \/ Raw Carbon","public_title":"GTS Standard \/ Raw Carbon","options":["GTS Standard","Raw Carbon"],"price":145000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":44526298038522,"title":"GTS Standard \/ Matte Clear Coat","option1":"GTS Standard","option2":"Matte Clear Coat","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GTS Standard \/ Matte Clear Coat","public_title":"GTS Standard \/ Matte Clear Coat","options":["GTS Standard","Matte Clear Coat"],"price":195000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":44526298071290,"title":"GTS Standard \/ Gloss Clear Coat","option1":"GTS Standard","option2":"Gloss Clear Coat","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GTS Standard \/ Gloss Clear Coat","public_title":"GTS Standard \/ Gloss Clear Coat","options":["GTS Standard","Gloss Clear Coat"],"price":185000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":44526298104058,"title":"GTS Standard \/ Satin Black","option1":"GTS Standard","option2":"Satin Black","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GTS Standard \/ Satin Black","public_title":"GTS Standard \/ Satin Black","options":["GTS Standard","Satin Black"],"price":195000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":38096173236377,"title":"GTS Pocketed \/ Raw Carbon","option1":"GTS Pocketed","option2":"Raw Carbon","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GTS Pocketed \/ Raw Carbon","public_title":"GTS Pocketed \/ Raw Carbon","options":["GTS Pocketed","Raw Carbon"],"price":145000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":40797592289433,"title":"GTS Pocketed \/ Matte Clear Coat","option1":"GTS Pocketed","option2":"Matte Clear Coat","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GTS Pocketed \/ Matte Clear Coat","public_title":"GTS Pocketed \/ Matte Clear Coat","options":["GTS Pocketed","Matte Clear Coat"],"price":195000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":40797618798745,"title":"GTS Pocketed \/ Gloss Clear Coat","option1":"GTS Pocketed","option2":"Gloss Clear Coat","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GTS Pocketed \/ Gloss Clear Coat","public_title":"GTS Pocketed \/ Gloss Clear Coat","options":["GTS Pocketed","Gloss Clear Coat"],"price":185000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":43840675086586,"title":"GTS Pocketed \/ Satin Black","option1":"GTS Pocketed","option2":"Satin Black","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GTS Pocketed \/ Satin Black","public_title":"GTS Pocketed \/ Satin Black","options":["GTS Pocketed","Satin Black"],"price":195000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":38096173334681,"title":"GT4 Extended \/ Raw Carbon","option1":"GT4 Extended","option2":"Raw Carbon","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GT4 Extended \/ Raw Carbon","public_title":"GT4 Extended \/ Raw Carbon","options":["GT4 Extended","Raw Carbon"],"price":155000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":40797592420505,"title":"GT4 Extended \/ Matte Clear Coat","option1":"GT4 Extended","option2":"Matte Clear Coat","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GT4 Extended \/ Matte Clear Coat","public_title":"GT4 Extended \/ Matte Clear Coat","options":["GT4 Extended","Matte Clear Coat"],"price":205000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":40797618864281,"title":"GT4 Extended \/ Gloss Clear Coat","option1":"GT4 Extended","option2":"Gloss Clear Coat","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GT4 Extended \/ Gloss Clear Coat","public_title":"GT4 Extended \/ Gloss Clear Coat","options":["GT4 Extended","Gloss Clear Coat"],"price":195000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":43840675119354,"title":"GT4 Extended \/ Satin Black","option1":"GT4 Extended","option2":"Satin Black","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - GT4 Extended \/ Satin Black","public_title":"GT4 Extended \/ Satin Black","options":["GT4 Extended","Satin Black"],"price":205000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":42430096900346,"title":"No Mounts \/ Raw Carbon","option1":"No Mounts","option2":"Raw Carbon","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - No Mounts \/ Raw Carbon","public_title":"No Mounts \/ Raw Carbon","options":["No Mounts","Raw Carbon"],"price":135000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":42430096933114,"title":"No Mounts \/ Matte Clear Coat","option1":"No Mounts","option2":"Matte Clear Coat","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - No Mounts \/ Matte Clear Coat","public_title":"No Mounts \/ Matte Clear Coat","options":["No Mounts","Matte Clear Coat"],"price":185000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":42430096965882,"title":"No Mounts \/ Gloss Clear Coat","option1":"No Mounts","option2":"Gloss Clear Coat","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - No Mounts \/ Gloss Clear Coat","public_title":"No Mounts \/ Gloss Clear Coat","options":["No Mounts","Gloss Clear Coat"],"price":175000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""},{"id":43840675184890,"title":"No Mounts \/ Satin Black","option1":"No Mounts","option2":"Satin Black","option3":null,"sku":"CP-GT4MK2","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"GT4 Mk2 Carbon Fiber Wing - No Mounts \/ Satin Black","public_title":"No Mounts \/ Satin Black","options":["No Mounts","Satin Black"],"price":185000,"weight":4000,"compare_at_price":null,"inventory_management":"shopify","barcode":""}]

Specifications:

Made in Germany
TUV approved
Complete Weight: 2-2.5kg (per variant)

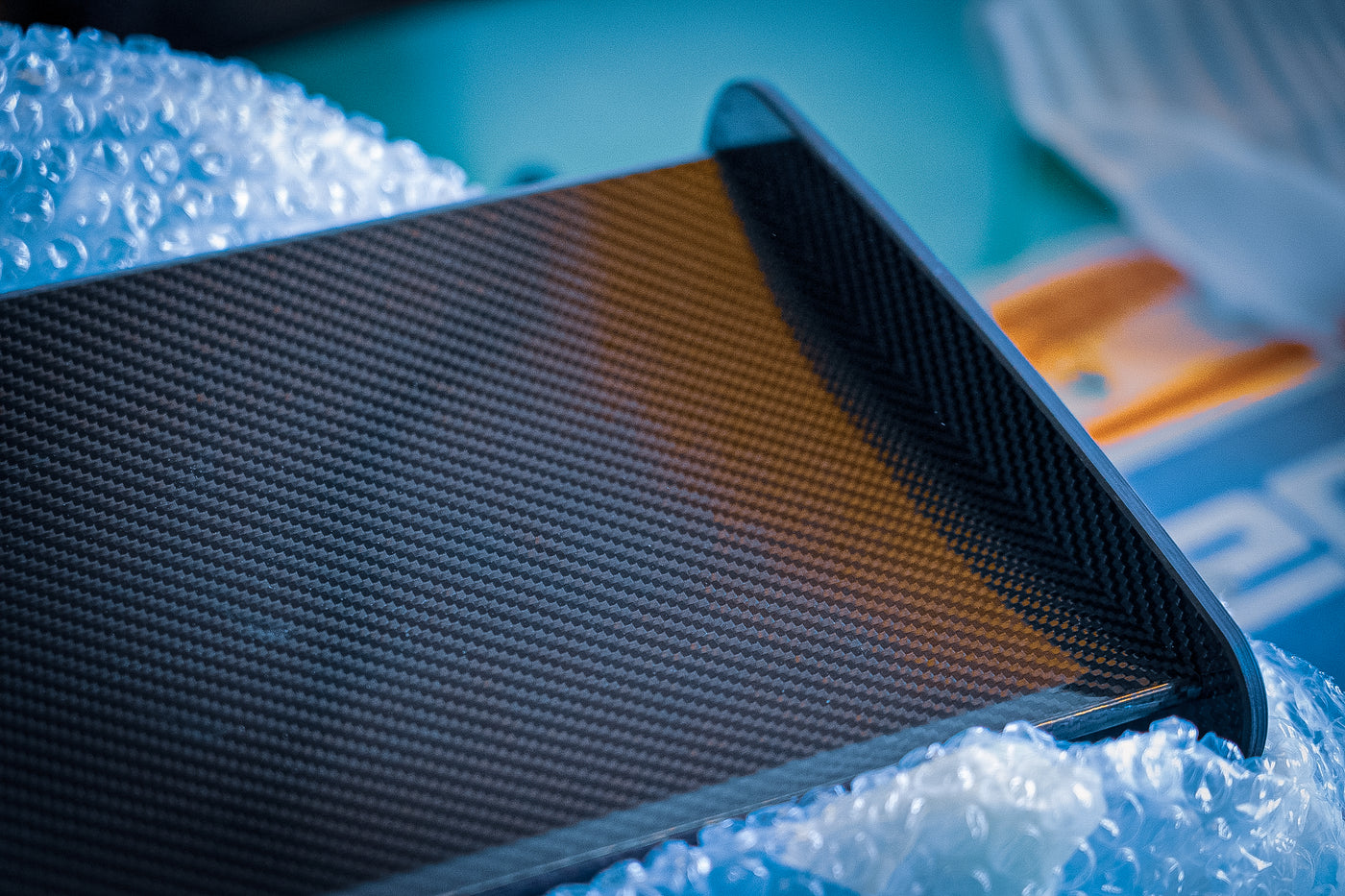

Pre Preg & Autoclaved Carbon Construction on Board & End Plates
2x2 Carbon Weave Pattern
Available with standard or pocketed GTS mounts and GT4 high mounts.

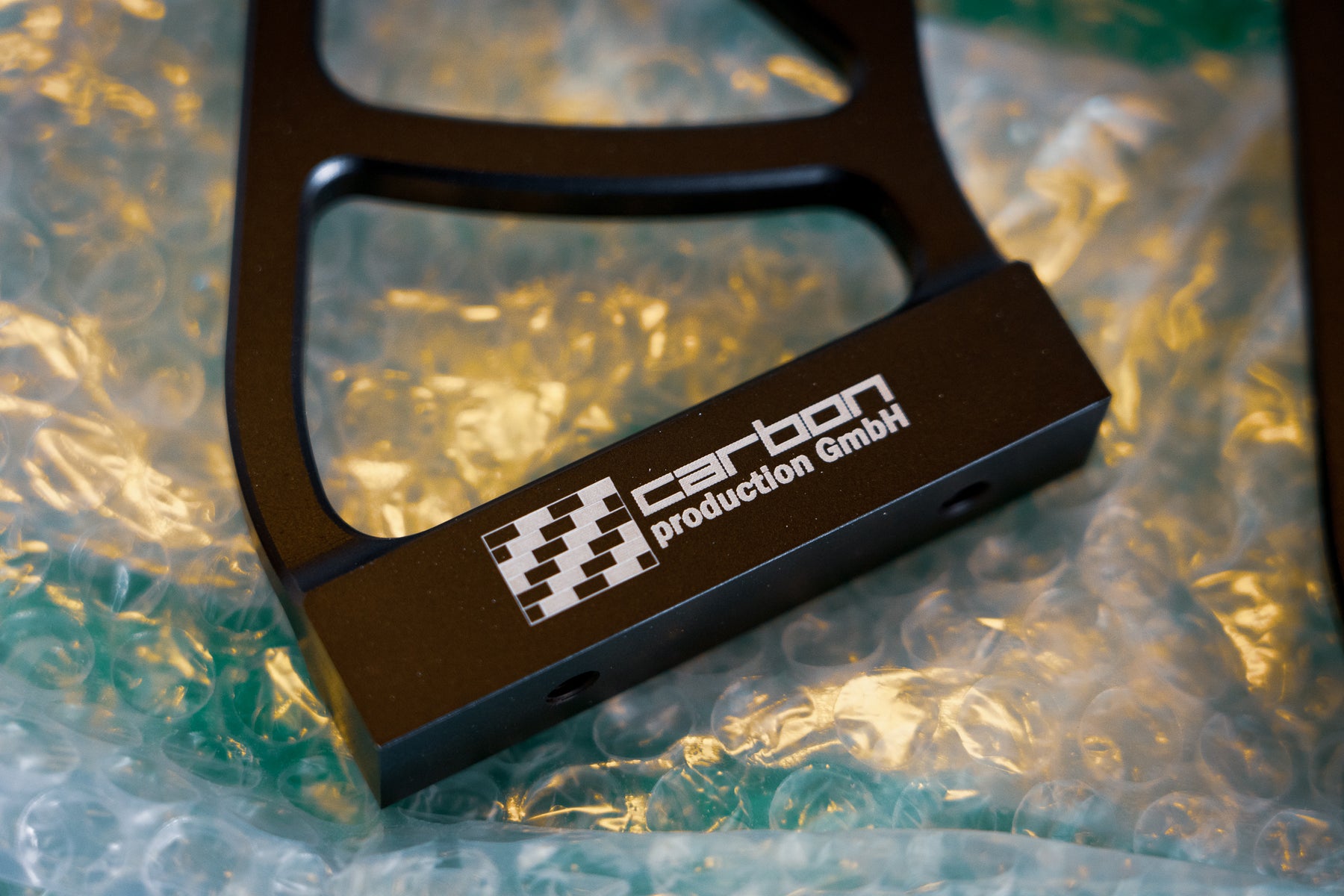

CNC machined mounts with satin black anodized finish
The drilling location is the same between GTS type and GT4 type mounts
Will fit OEM GTS mounts

options

Riser styles.

The GTS and GT4 Mk2 carbon wings can be fitted with any of the 3x riser styles.

The drilling locations on the trunk, and the mounting points of the wings are the same.

The GTS standard is shown on the left, while the GTS pockete and GT4 extended are shown on the right.

Learn more

Dennis fitted the GT4 MK2 wing to his E92 M3 with standard GTS mounts.

@dennis_rivera_h

Installation Notes

Professional installation is recommended. Drilling templates are not included.

Recommend hardware

For Motorsport usage, consider adding reinforcement plates to the trunk's mounting points. M8x1.25 bolts to fit the risers to the trunk are not included.
